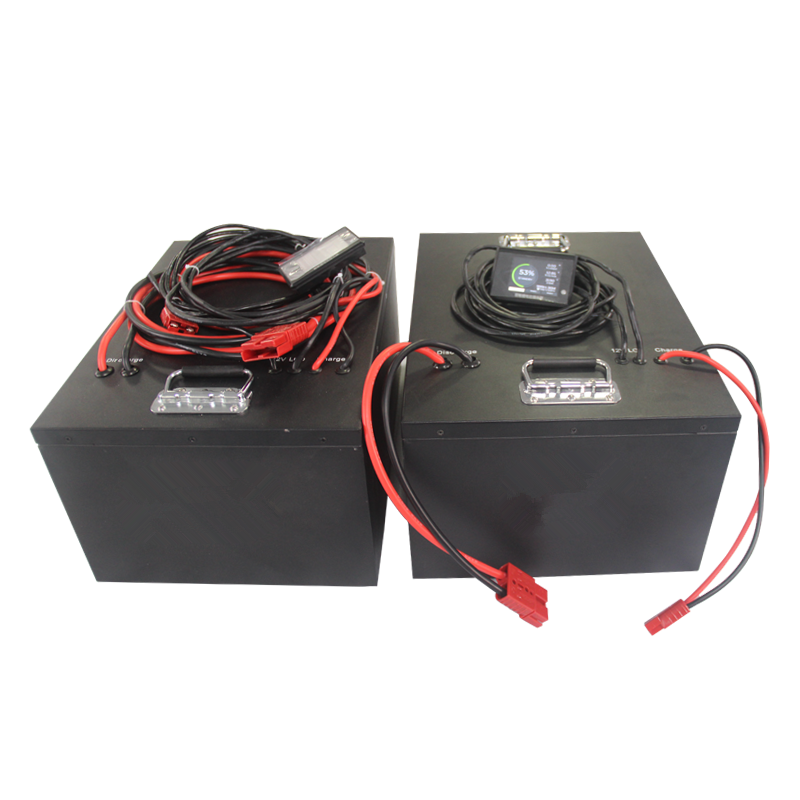

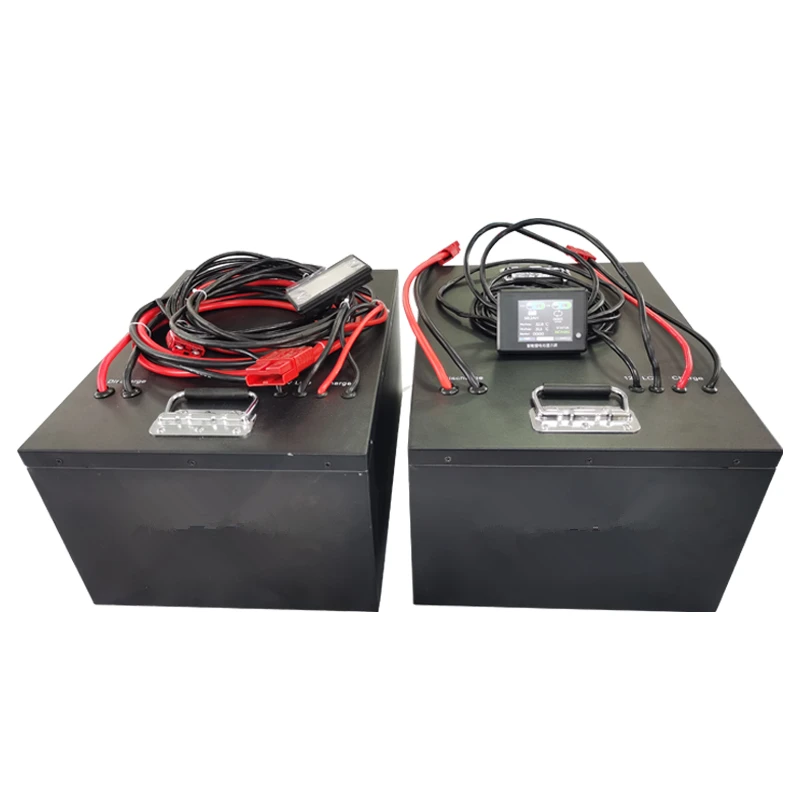

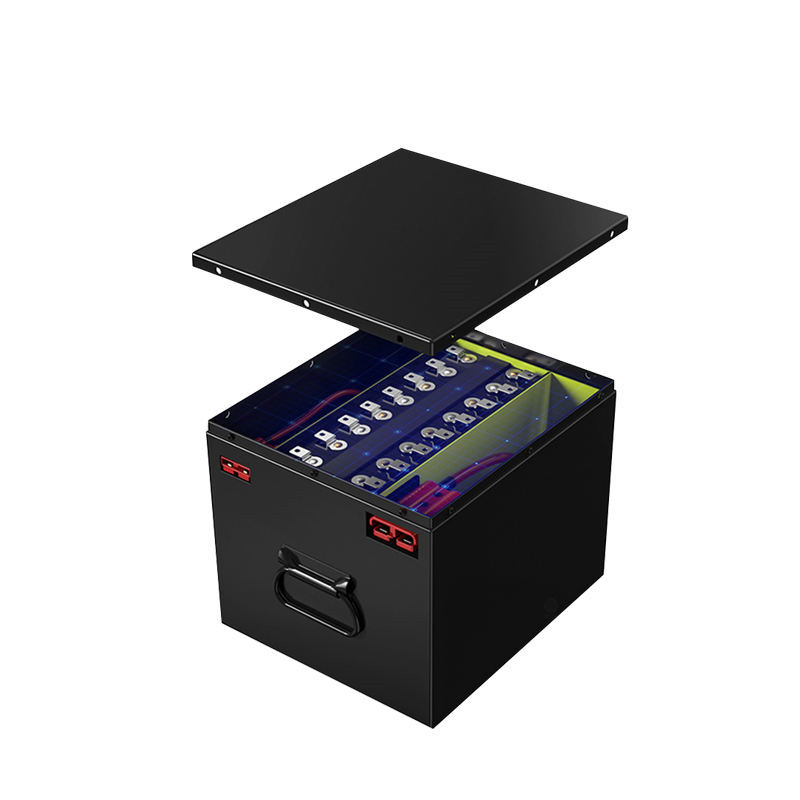

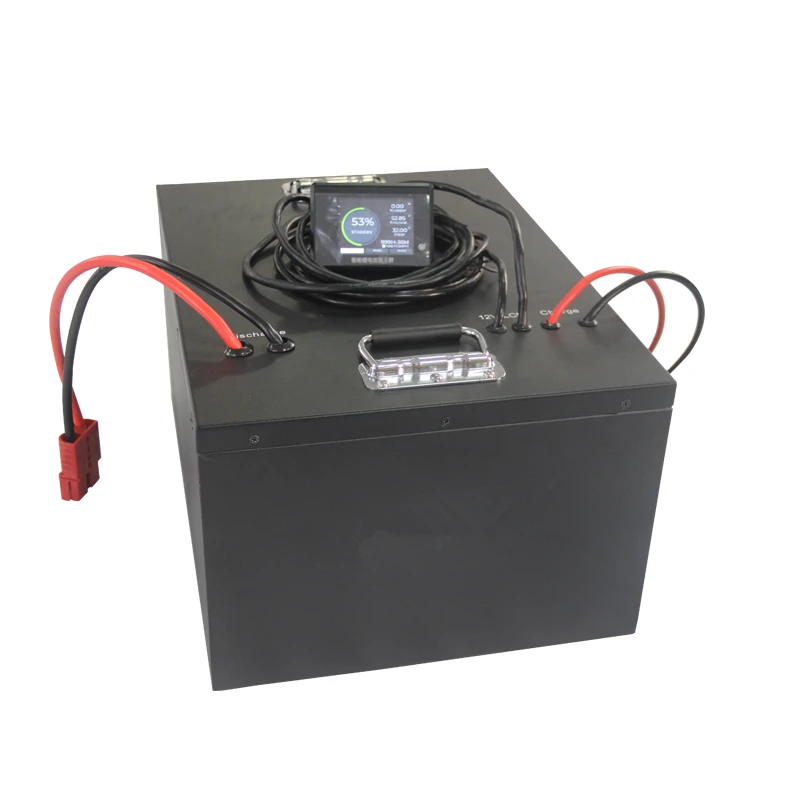

Customized Design tour car lifepo4 battery 51.2V 50Ah 60ah 80Ah 48V Golf Cart Lithium Battery
- Product Description
|
Model Number |
LFP36-100 |
LFP48-60 |
LFP48-80 |
LFP48-100 |
|
Rated Voltage (V) |
38.4V |
51.2V |
51.2V |
51.2V |
|
Rated Capacity (Ah) |
100Ah |
60Ah |
80Ah |
100Ah |
|
Watt Hours Capacity (Wh) |
3840Wh |
3072Wh |
4096Wh |
5120Wh |
|
Charge Current (Recommended) |
25A |
15A |
20A |
25A |
|
Max Charge Current (0.5C) |
50A |
30A |
40A |
50A |
|
Max. Continuous Discharging |
100A |
60A |
80A |
100A |
|
Max. Peak Discharging Current for only 3-5 Seconds, 2C |
200A |
120A |
160A |
200A |
|
Weight Approx. |
40.0Kg |
31.5Kg |
41.0Kg |
47.0Kg |
|
Dimensions(L×W×H) |
450*265*150mm |
350*325*250mm |
460*335*230mm |
460*335*230mm |
|
Max Charge Voltage |
58.4V |
Discharge Cut Off Voltage |
30.0V |
40.0V |
|
Extra Function |
LCD & 12V OutputOuter PackageBlack Iron Case |
|||
|
BMS Protection |
Over-Charge, Over-Discharge, Over-Current and Short Circuit |
|||
|
Operating Temperature |
Storage & Charging 0~45℃ Discharging -20~60℃ |
|||
|
Cycles |
3000 cycles @100% D.o.D, remaining 80% Capacity |
|||
|
Battery Design Lifespan |
15 to 20 Years Warranty 12 Months |
|||
