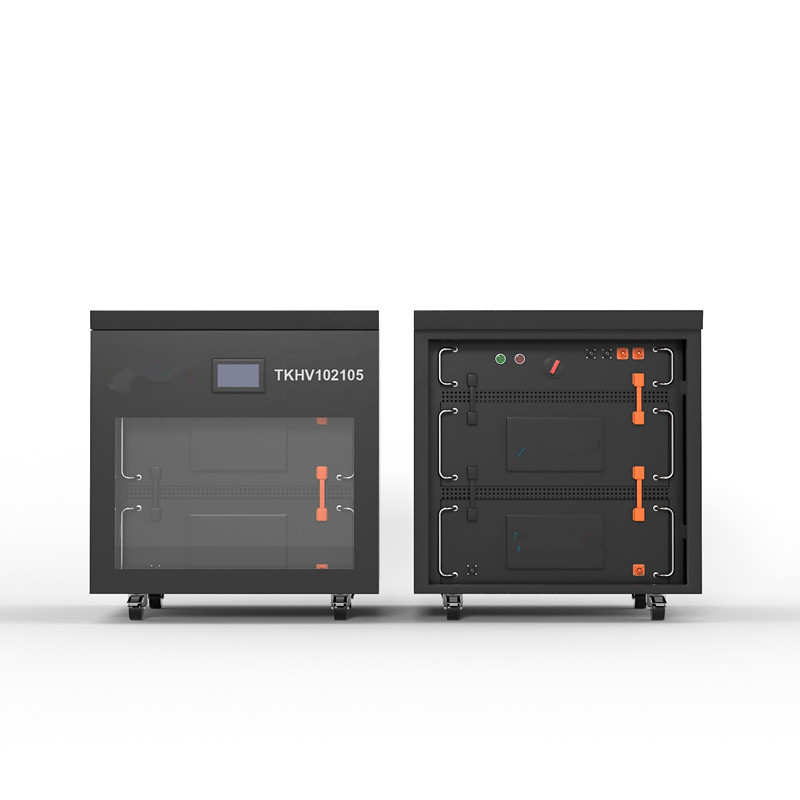

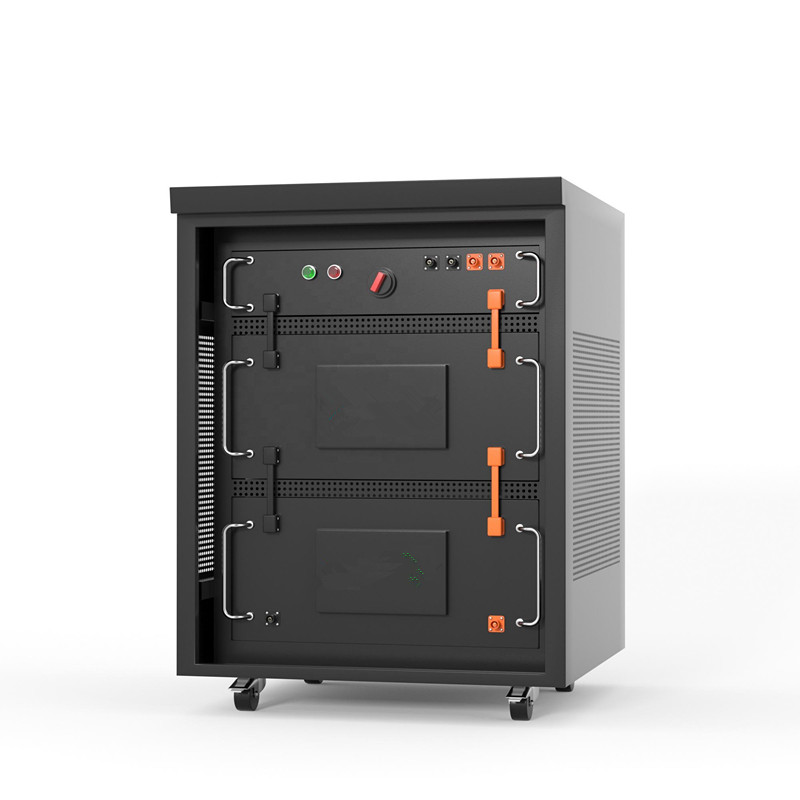

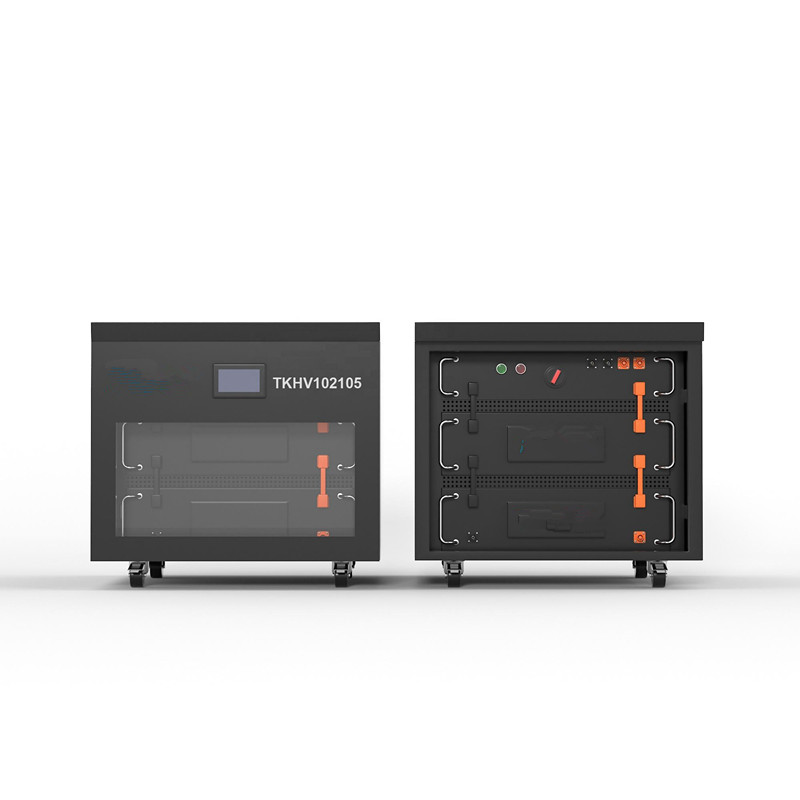

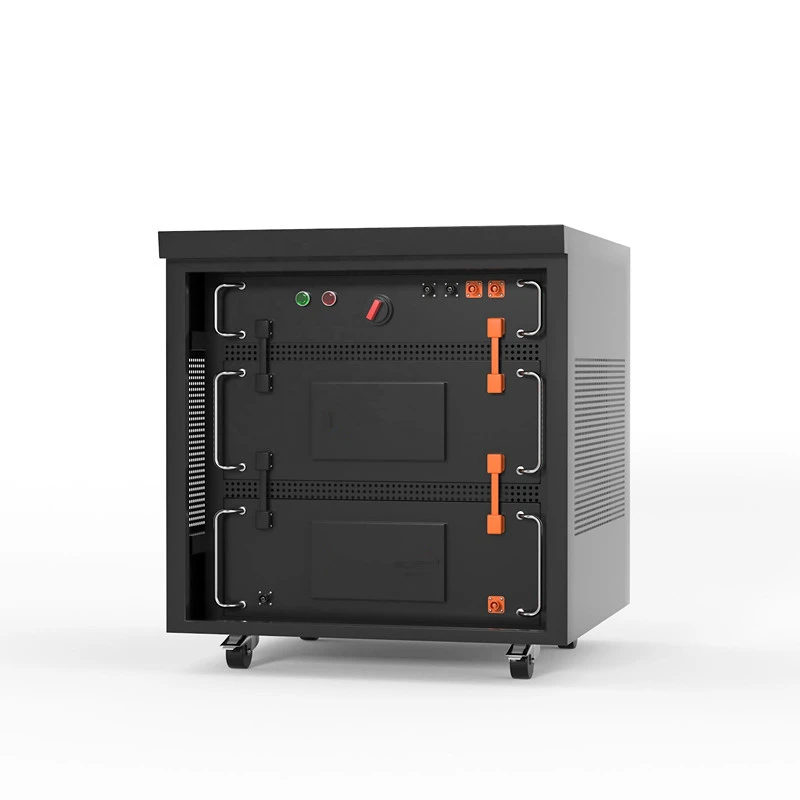

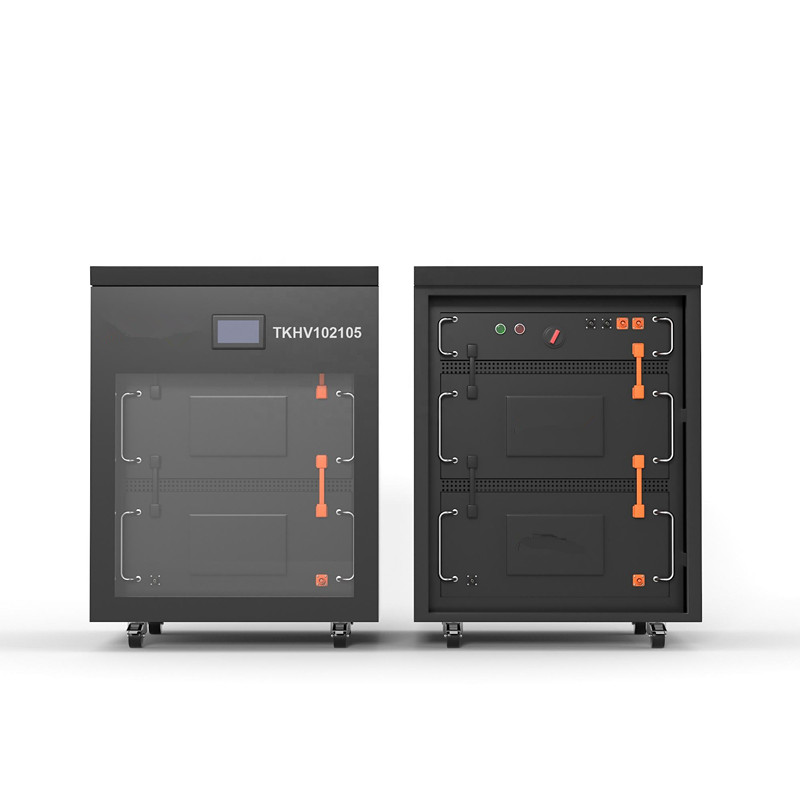

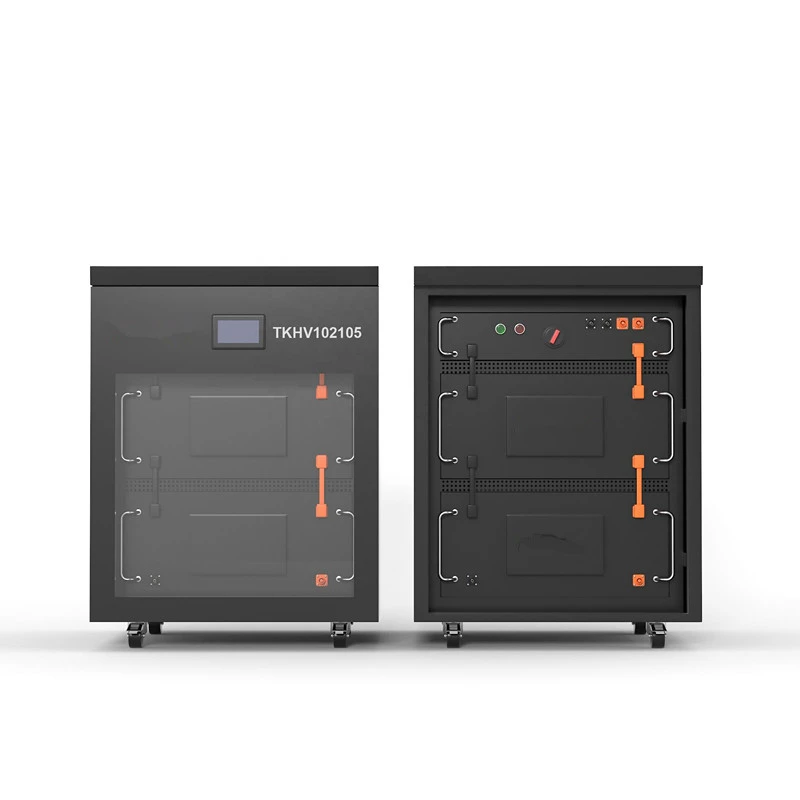

HV battery 102.4V 204.8V 256V 409.6V solar battery lithium ion LifePO4 50Ah 80Ah 105Ah 160Ah 230Ah Lithium battery
- Product Description
|
Rated voltage |
256V |
|||||
|
Working voltage range |
184-292V |
|||||
|
Charge voltage |
272-276V |
|||||
|
Floating charge voltage |
268-272V |
|||||
|
Rated capacity |
50AH |
80AH |
105AH |
160AH |
230AH |
280AH |
|
Energy |
12.8KWH |
20.48KWH |
26.88KWH |
40.96KWH |
59.34KWH |
71.68KWH |
|
Rated charge current |
25A |
40A |
50A |
80A |
115A |
140A |
|
Peak charge current |
50A |
80A |
105A |
160A |
230A |
280A |
|
Rated discharge current |
50A |
80A |
105A |
160A |
230A |
280A |
|
Peak discharge current |
100A |
160A |
210A |
320A |
460A |
460A |
|
Charge temperature |
0-55℃ |
|||||
|
Discharge temperature |
-10-55℃ |
|||||
|
Optimum temperature |
15-25℃ |
|||||
|
Cooling method |
Natural cooling |
|||||
|
Relative humidity |
5%-95% |
|||||
|
Altitude |
≤2000M |
|||||
|
Cycle Life |
≥8000times@80%DOD，0.5C/0.5C，25℃ |
|||||
|
Communication interfaces |
CAN2.0/RS485/Dry |
|||||
|
Protection |
Over temperature, over current, over voltage, insulation and other multiple protection |
|||||
|
Display |
LCD |
|||||
|
Design lifetime |
≥10 years |
|||||
|
Certification |
UN38.3/UL1973/IEC62619 |
|||||
|
Dimension（L*W*H） |
600*600*1287MM |
600*600*1510MM |
600*600*1510MM |
600*600*1465MM |
600*660*1643MM |
600*800*1643MM |
|
Weight |
240KG |
300KG |
325KG |
385KG |
465KG |
565KG |
|
Module modle |
51.2V50AH |
51.2V80AH |
51.2V105AH |
51.2V160AH |
51.2V230AH |
51.2V280AH |
|
Serial/Parallel |
16S1P |
16S1P |
16S1P |
16S1P |
16S1P |
16S1P |
|
Module dimension |
482.6*416.2*132.5MM |
482.6*416.2*177MM |
482.6*416.2*177MM |
482.6*554*221.5MM |
482.6*614*265.9MM |
482.6*754*265.9MM |
|
Module weight |
30KG |
41.5KG |
46.5KG |
72KG |
90KG |
114KG |
|
Number of modules |
4PCS |
4PCS |
4PCS |
4PCS |
4PCS |
4PCS |
|
Battery type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
LiFePO4 |
LiFePO4 |
LiFePO4 |
