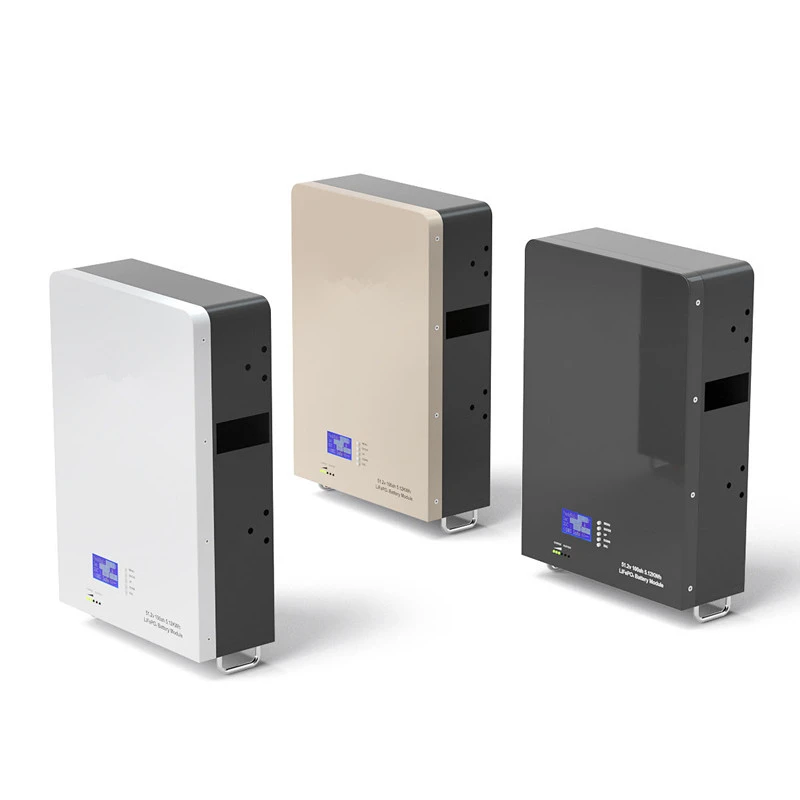

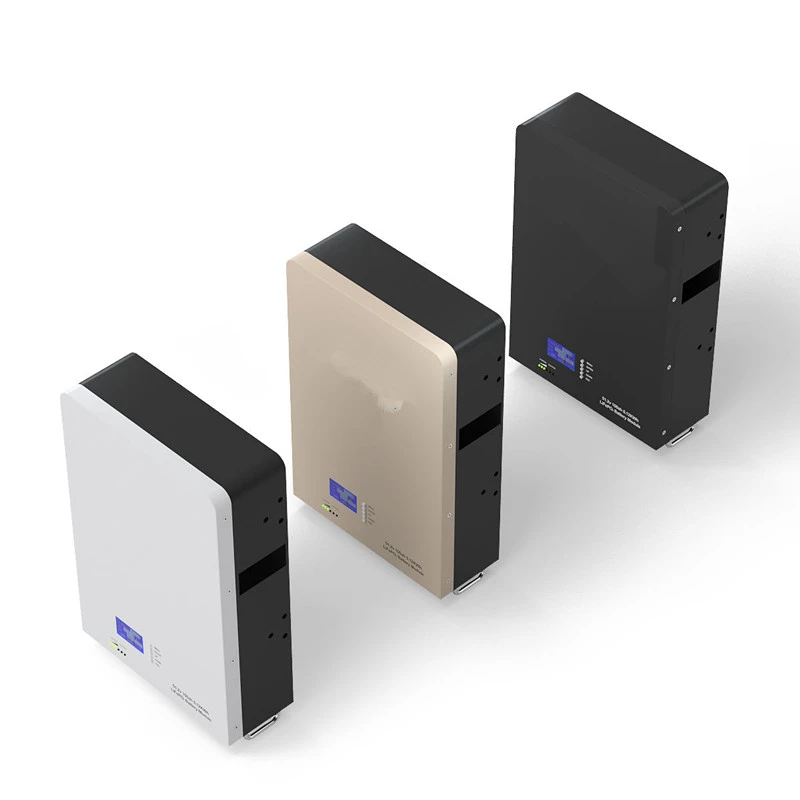

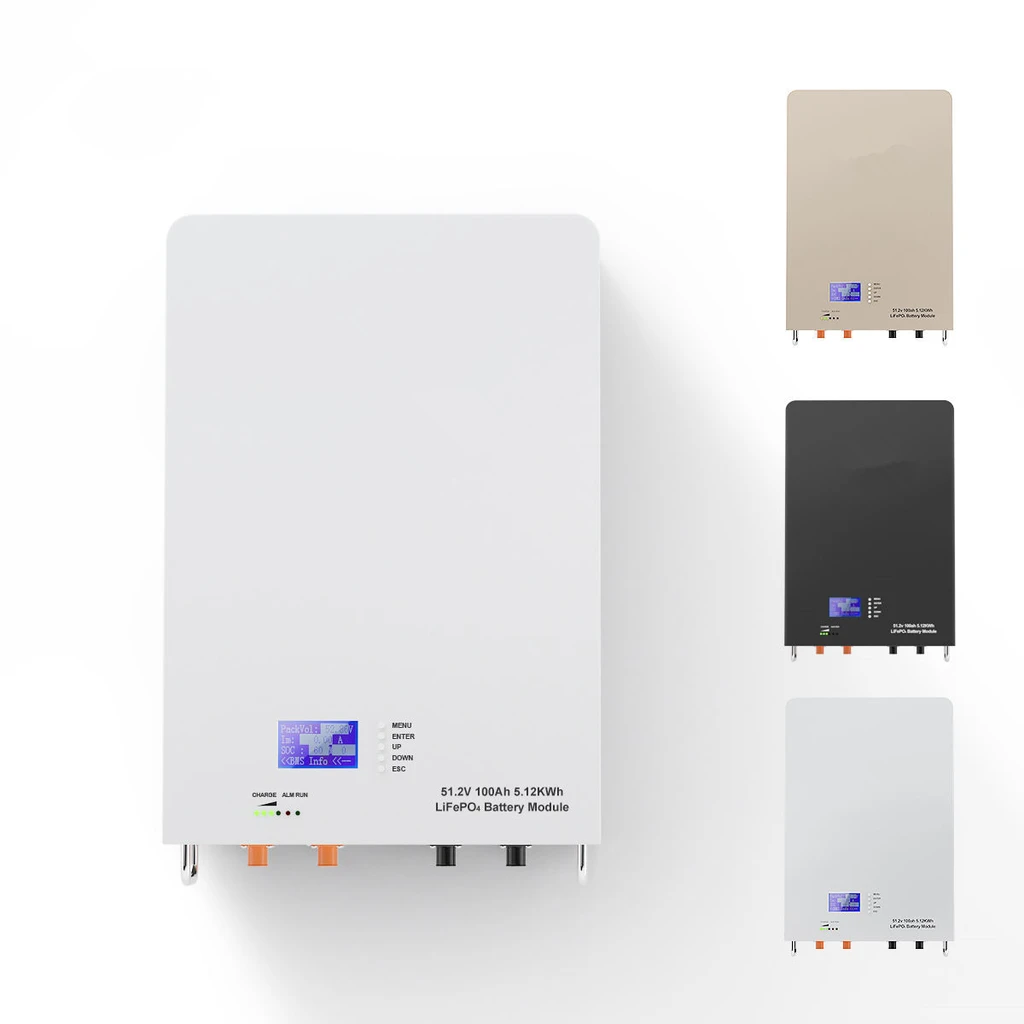

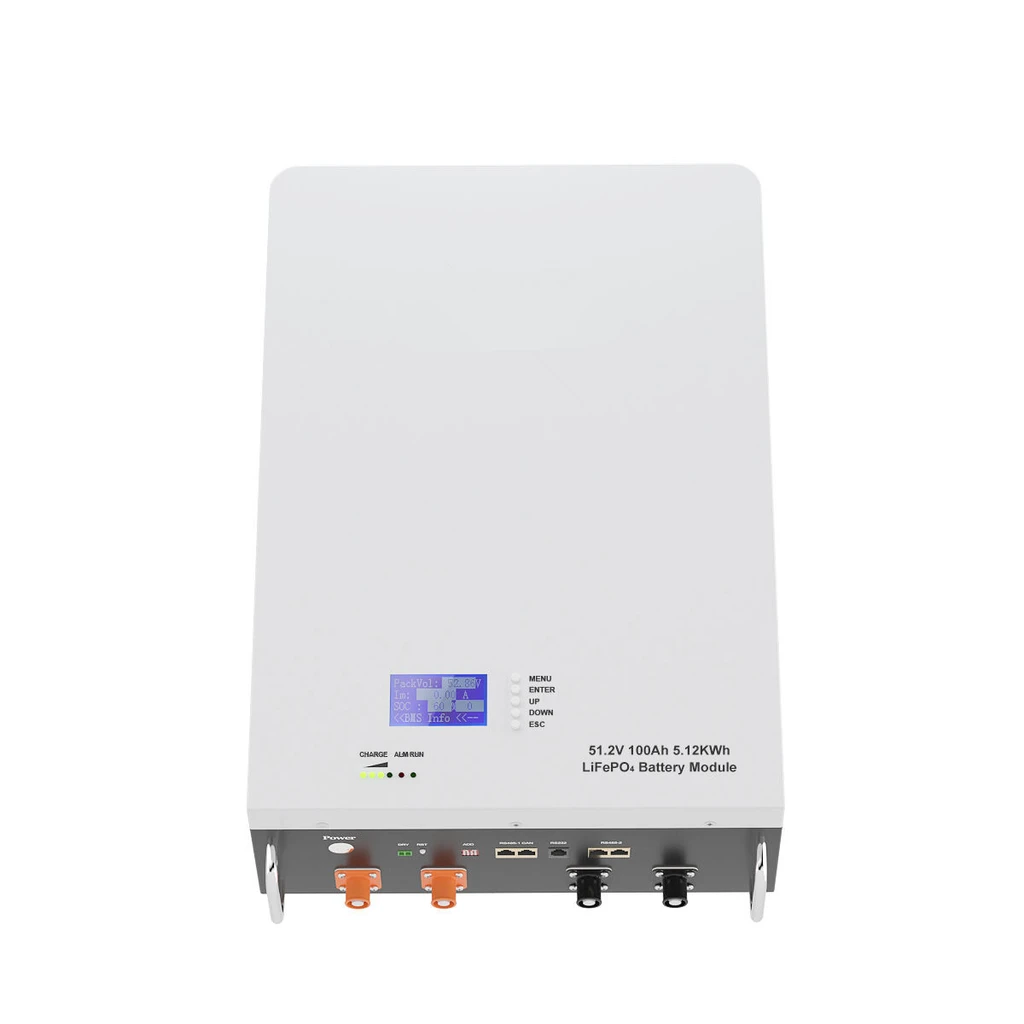

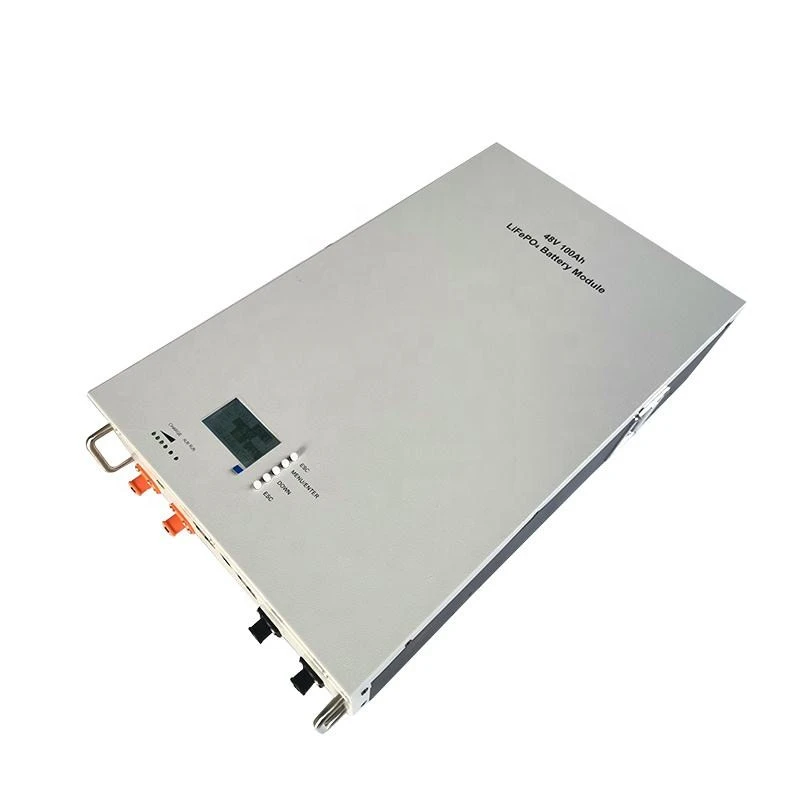

Solar Battery LiFePO4 48v 100ah 5KWh Wall-mounted lithium battery
- Product Description
|
capacity |
size |
weight |
|
24V100AH |
400*110*520MM |
24KG |
|
48V50AH |
400*110*520MM |
24KG |
|
48V100AH |
360*175*520MM |
45KG |
|
48V200AH |
540*200*950MM |
120KG |
|
Function Parameter |
|
|
Norminal Battery Energy |
5120wh |
|
Norminal Capacity |
100Ah |
|
Norminal Voltage |
48V |
|
Internal Resistance |
≤22mΩ |
|
Cycle Life |
>6000 |
|
Months Self Discharge |
<3% |
|
Charge Data |
|
|
DC Normal Charge Voltage |
54.75±1Vdc |
|
Charge Mode |
0.2C to 54.75V, then 54.75V,charge current to 0.02C (CC/CV) |
|
Recommended Charger Current |
≤50A |
|
Allowed Max. Charge Current |
50Adc |
|
Charge Cut-off Voltage |
54.75±1Vdc |
|
Discharge Data |
|
|
Continuous Discharge Current |
50A |
|
Allowed Max. discharge current |
100A (option:200Adc) |
|
Rang of DC discharge voltage |
37.5V-54.75Vdc |
|
Working Condition |
|
|
Charge Temperature |
0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity |
|
Discharge Temperature |
-20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity |
|
Storage Temperature |
0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity |
|
Enclosure Protection Level |
IP20 |
|
Mechanical Data |
|
|
Cell & Method |
3.2V100Ah, Prismatic |
|
Shell material |
Iron |
